Load-Bearing and Natural Drainage Surface Solutions for Public Infrastructure

Sep 06 , 2026 | 24

At public spaces such as plazas, parks, school campuses, and riverside walkways, paved surfaces face some of the most demanding conditions: heavy pedestrian traffic, maintenance vehicles, and continuous exposure to changing weather conditions, including rain and sunshine.

If only conventional thin paving tiles are used, the surface can quickly become prone to settlement, chipped edges, or slippery standing water after rainfall.

The emergence of Viettiles Ziczac artistic garden pavers offers a comprehensive solution for public infrastructure: combining high mechanical strength, a self-locking anti-shift mechanism, and warm, natural colors to create public spaces designed for long-term performance and visual appeal.

Load-Bearing and Natural Drainage Surface Solutions for Public Infrastructure

Smart Self-Locking Mechanism for Stable Paving

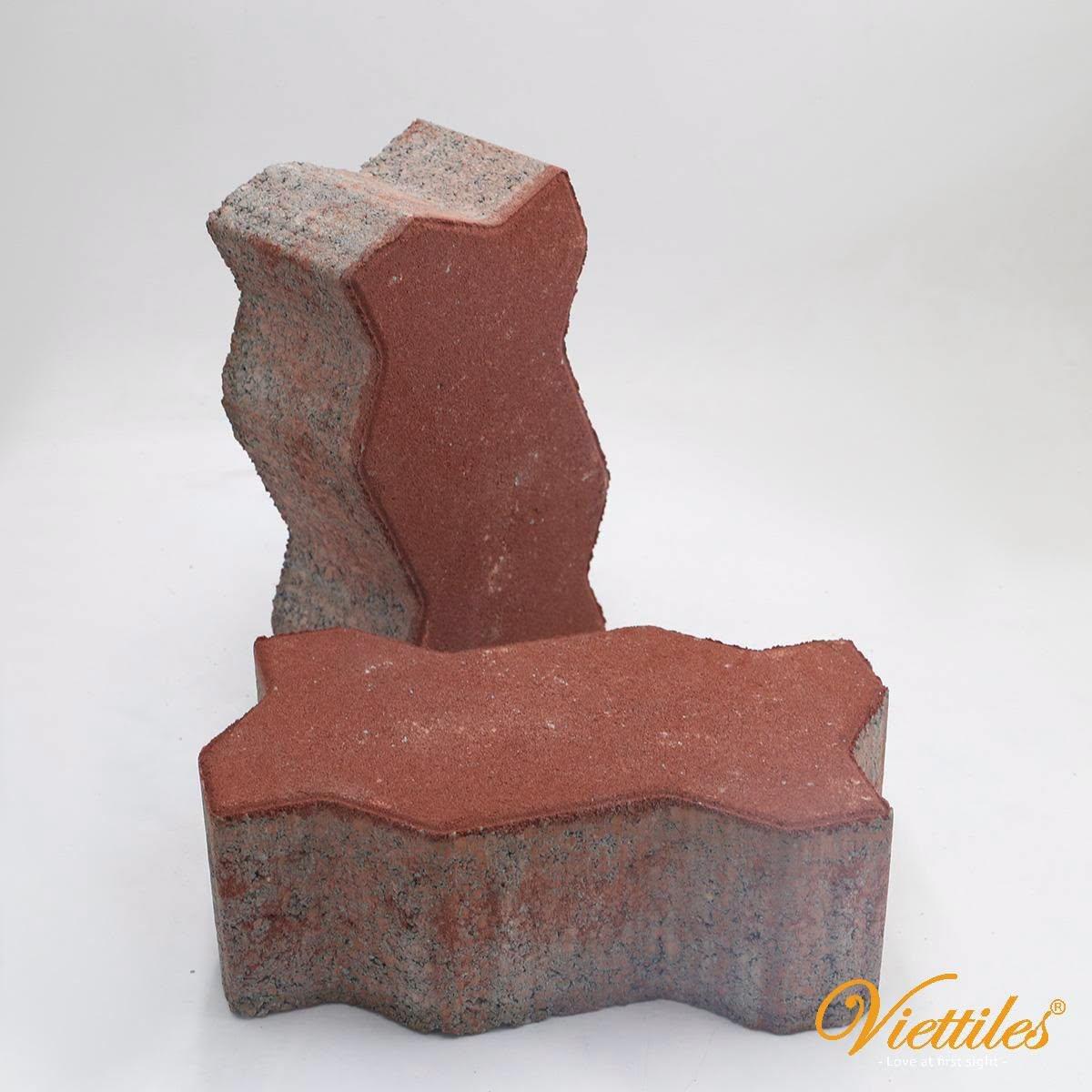

The key advantage of Ziczac interlocking pavers lies in their multi-directional interlocking zigzag geometry:

1. Multi-Directional Interlocking Helps Resist Lateral Forces

When exposed to forces from parked vehicle wheels or continuous pedestrian movement, the serrated edges of each paver interlock tightly with adjacent pieces. Forces applied at a single point are distributed across the surrounding paved area, helping reduce joint movement, edge displacement, and localized settlement.

2. Natural Drainage Channels Help Reduce Slipping Risks

The Ziczac joints between individual pavers form a network of natural drainage channels across the surface. During heavy rainfall, water can quickly infiltrate and drain into the sand bedding layer below instead of accumulating in puddles, helping the surface dry faster and providing a safer walking environment.

3. Dense Hydraulic Static-Pressed Aggregate Structure

The pavers are manufactured from a mixture of high-strength cement, coarse-grained sand, and stone powder, compacted under high static pressure. This creates strong compressive strength and wear resistance, making the pavers well suited to areas exposed to frequent loads.

Natural Earth-Red Tones and Landscape Value for Open Public Spaces

Beyond load-bearing performance, Viettiles Ziczac artistic garden pavers are also valued for their landscape aesthetics:

Rustic earth-red tones: Natural mineral pigments are incorporated deeply into the paver body, creating a warm earth-red shade that feels natural and connects harmoniously with greenery, water features, and surrounding concrete architecture.
Color stability under sunlight: Thanks to the natural mineral coloring and non-fired production process, the surface is designed to maintain its color without easily becoming faded or uneven under prolonged outdoor exposure to ultraviolet (UV) rays.
Visual rhythm for walkways: Long stretches of Ziczac pavers create a soft sense of movement, helping reduce the rigid appearance often associated with conventional straight walkways.

Load-Bearing and Natural Drainage Surface Solutions for Public Infrastructure

5 Ideal Applications for Ziczac Garden Pavers

Thanks to their flexible installation and impressive mechanical durability, these pavers can be widely applied in infrastructure projects and public spaces:

Urban plazas and pedestrian streets: Suitable for areas with thousands of pedestrian movements each day, helping minimize concerns about cracking, breakage, or surface wear.
School and hospital campuses: A lightly textured surface helps reduce slipping risks during rainy weather, supporting safer movement for students, visitors, and older adults.

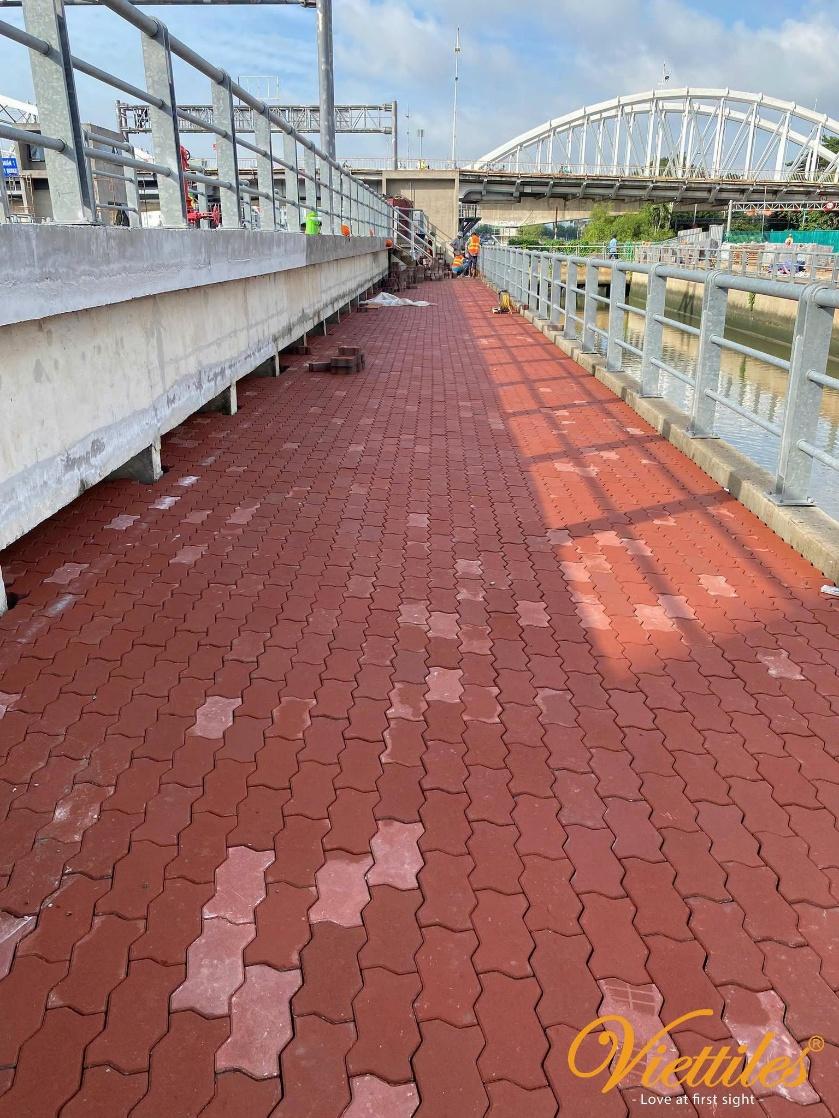

Park walkways and riverside embankments: Efficient surface drainage helps keep walking paths dry and clean after rainfall.
Outdoor parking areas and internal roads in urban developments: Designed to withstand static and dynamic loads from light vehicles while helping maintain the stability of the paved surface.
Resorts and eco-friendly hospitality spaces: Create a rustic landscape accent along gently curving paths through lawns and green vegetation.

Technical Installation Notes for Maximizing the Service Life of Ziczac Interlocking Pavers

To maximize the load-bearing performance of a Ziczac paved surface, proper sub-base preparation plays a critical role:

Compact the subgrade: The underlying soil should be compacted to the required K95 or K98 density level depending on the project's load requirements to help prevent uneven settlement.
Prepare an accurately leveled sand bedding layer: Spread approximately 3–5 cm of sand and level it evenly to create a stable bedding layer. Avoid sealing the bottom with wet cement mortar so the system can maintain its natural drainage capability.
Install edge restraints: Concrete edge restraints or fixed curbs should be installed around the paved area before laying the pavers to secure the outer load-bearing frame.
Vibrate the finished surface: After laying the pavers and sweeping fine sand into the Ziczac joints, use a light plate compactor fitted with a rubber pad and run it evenly across the surface so the pavers interlock firmly.

Load-Bearing and Natural Drainage Surface Solutions for Public Infrastructure

About Viettiles – Sustainable Exterior and Landscape Material Solutions

Viettiles is a pioneering manufacturer and supplier in Vietnam specializing in handcrafted cement tiles, artistic ventilation blocks, and high-quality artistic garden pavers:

Large-scale manufacturing system: Viettiles operates three factories in Ho Chi Minh City and Binh Phuoc, equipped with modern static-pressing technology to support large-volume production and on-time delivery for public infrastructure and urban development projects.
Consistent quality standards: Each paver is carefully controlled for dimensions, compressive strength, and edge flatness, helping streamline installation and minimize material waste.
Green production orientation: 100% of products are naturally cured without firing, helping reduce CO₂ emissions and supporting a more environmentally conscious approach to landscape construction.

Are you looking for Viettiles Ziczac artistic garden pavers, sidewalk paving solutions, or technical installation advice for a public landscape project?

Contact Viettiles or visit our showroom network to inspect actual paver samples, receive technical installation guidelines, and obtain a detailed quotation based on your project volume.
